Description
Specification

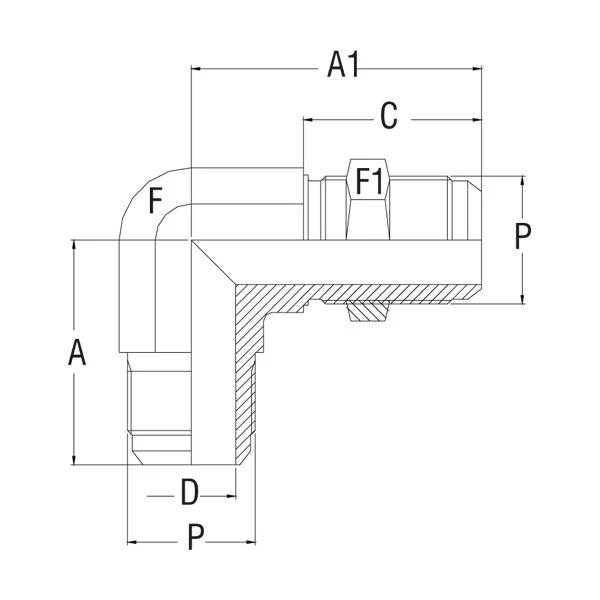

| Model No. | TUBE OD (MM) | UN / UNF (INCH) | THREAD (A/F) | A (MM) | A1 (MM) | C (MM) | D (MM) | F (MM) | F1 (MM) | Model No. (alt) |
|---|---|---|---|---|---|---|---|---|---|---|
| GV-308F-BE-4 | 6 | 1/4 | 7/16 - 20 | 24.6 | 40.4 | 28.3 | 4.4 | 11 | 17 | GV-308F-BE-6m |
| GV-308F-BE-5 | 8 | 5/16 | 1/2 - 20 | 26.2 | 41.1 | 28.3 | 6 | 13 | 19 | GV-308F-BE-8m |
| GV-308F-BE-6 | 10 | 3/8 | 9/16 - 18 | 27.7 | 46 | 30.1 | 7.5 | 14 | 22 | GV-308F-BE-10m |
| GV-308F-BE-8 | 12 | 1/2 | 3/4 - 16 | 34.5 | 53.6 | 35 | 9.9 | 19 | 24 | GV-308F-BE-12m |
| GV-308F-BE-10 | 14/15/16 | 5/8 | 7/8 - 14 | 39.6 | 60.7 | 38.5 | 12.3 | 22 | 30 | GV-308F-BE-14m/15m/16m |
| GV-308F-BE-12 | 18/20 | 3/4 | 1 1/16 - 12 | 45.2 | 67.8 | 42.8 | 15.5 | 27 | 36 | GV-308F-BE-18m/20m |
| GV-308F-BE-16 | 25 | 1 | 1 5/16 - 12 | 49 | 71 | 42.8 | 21.5 | 33 | 41 | GV-308F-BE-25m |
| GV-308F-BE-20 | 28/30/32 | 1 1/4 | 15/8 - 12 | 55 | 76 | 44.1 | 27.5 | 41 | 50 | GV-308F-BE-28m/30m/32m |
