Bulkhead Run Tee
Original price was: ₹12.₹10Current price is: ₹10.
Description
Specification

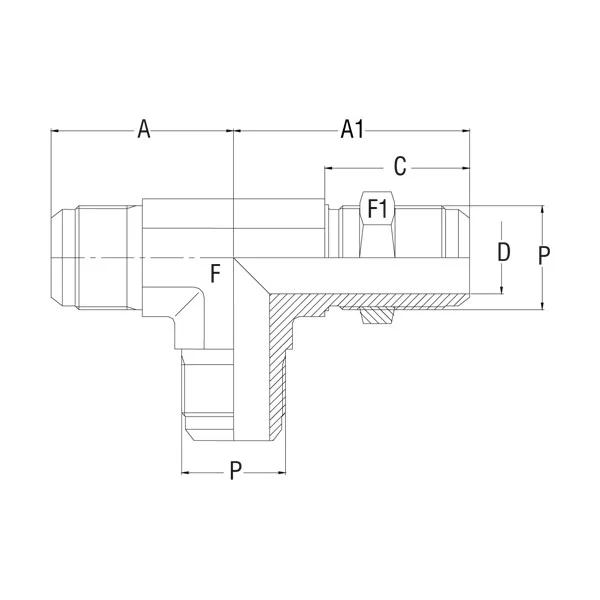

| Model No. | Tube OD (mm) | Tube OD (inch) | Thread P | Thread P1 | A (mm) | A1 (mm) | D (mm) | F (mm A/F) | F1 (mm A/F) | Alt. Model No. |
|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | TUBE OD (mm) | TUBE OD (inch) | THREAD (UN / UNF) | A (mm) | A1 (mm) | C (mm) | D (mm) | F (mm) | F1 (mm) | Metric Model No. |
| GV-316F-BRT-4 | 6 | 1/4 | 7/16 - 20 | 24.6 | 40.4 | 28.3 | 4.4 | 11 | 17 | GV-316F-BRT-6m |
| GV-316F-BRT-5 | 8 | 5/16 | 1/2 - 20 | 26.2 | 41.1 | 28.3 | 6 | 13 | 19 | GV-316F-BRT-8m |
| GV-316F-BRT-6 | 10 | 3/8 | 9/16 - 18 | 27.7 | 46 | 30.1 | 7.5 | 14 | 22 | GV-316F-BRT-10m |
| GV-316F-BRT-8 | 12 | 1/2 | 3/4 - 16 | 34.5 | 53.6 | 35 | 9.9 | 19 | 24 | GV-316F-BRT-12m |
| GV-316F-BRT-10 | 14/15/16 | 5/8 | 7/8 - 14 | 39.6 | 60.7 | 38.5 | 12.3 | 22 | 30 | GV-316F-BRT-14m/15m/16m |
| GV-316F-BRT-12 | 18/20 | 3/4 | 1 1/16 - 12 | 45.2 | 67.8 | 42.8 | 15.5 | 27 | 36 | GV-316F-BRT-18m/20m |
| GV-316F-BRT-16 | 25 | 1 | 1 5/16 - 12 | 49 | 71 | 42.8 | 21.5 | 33 | 41 | GV-316F-BRT-25m |
