Description
Specification

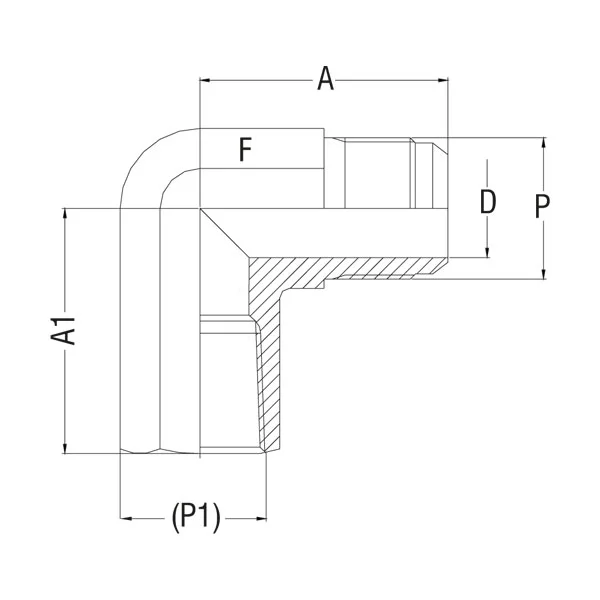

| Model No. | TUBE OD (MM) | TUBE OD (INCH) | THREAD UN / UNF | THREAD NPTF | P | P1 | A (MM) | A1 (MM) | D (MM) | F (MM) | Metric Model No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GV-314F-FE-4-2 | 6 | 1/4 | 7/16 - 20 | 1/8 - 27 | 27.4 | 16.8 | 4.4 | 14 | GV-314F-FE-6m-2 | ||
| GV-314F-FE-4-4 | 6 | 1/4 | 7/16 - 20 | 1/4 - 18 | 31 | 22.3 | 4.4 | 19 | GV-314F-FE-6m-4 | ||
| GV-314F-FE-5-2 | 8 | 5/16 | 1/2 - 20 | 1/8 - 27 | 27.4 | 16.8 | 6 | 14 | GV-314F-FE-8m-2 | ||
| GV-314F-FE-5-4 | 8 | 5/16 | 1/2 - 20 | 1/4 - 18 | 28.7 | 22.3 | 6 | 19 | GV-314F-FE-8m-4 | ||
| GV-314F-FE-6-2 | 10 | 3/8 | 9/16 - 18 | 1/8 - 27 | 31.2 | 17 | 7.5 | 14 | GV-314F-FE-10m-2 | ||
| GV-314F-FE-6-4 | 10 | 3/8 | 9/16 - 18 | 1/4 - 18 | 31.2 | 22.3 | 7.5 | 19 | GV-314F-FE-10m-4 | ||
| GV-314F-FE-6-6 | 10 | 3/8 | 9/16 - 18 | 3/8 - 18 | 33.3 | 25.9 | 7.5 | 22 | GV-314F-FE-10m-6 | ||
| GV-314F-FE-8-4 | 12 | 1/2 | 3/4 - 16 | 1/4 - 18 | 36.1 | 25.6 | 9.9 | 19 | GV-314F-FE-12m-4 | ||
| GV-314F-FE-8-6 | 12 | 1/2 | 3/4 - 16 | 3/8 - 18 | 36.1 | 25.9 | 9.9 | 22 | GV-314F-FE-12m-6 | ||
| GV-314F-FE-8-8 | 12 | 1/2 | 3/4 - 16 | 1/2 - 14 | 38.7 | 31.2 | 9.9 | 27 | GV-314F-FE-12m-8 | ||
| GV-314F-FE-10-8 | 14/15/16 | 5/8 | 7/8 - 14 | 1/2 - 14 | 41.7 | 31.2 | 12.3 | 27 | GV-314F-FE-14m/15m/16m-8 | ||
| GV-314F-FE-12-8 | 18/20 | 3/4 | 1 1/16 - 12 | 1/2 - 14 | 48 | 34.3 | 15.5 | 27 | GV-314F-FE-18m/20m-8 | ||
| GV-314F-FE-12-12 | 18/20 | 3/4 | 1 1/16 - 12 | 3/4 - 14 | 48 | 34.5 | 15.5 | 33 | GV-314F-FE-18m/20m-12 | ||
| GV-314F-FE-16-16 | 25 | 1 | 1 5/16 - 12 | 1 - 11.5 | 55.1 | 41.4 | 21.5 | 41 | GV-314F-FE-25m-16 | ||
| GV-314F-FE-20-20 | 28/30/32 | 1 1/4 | 1 5/8 - 12 | 1 1/4 - 11.5 | 59.2 | 43.2 | 27.5 | 48 | GV-314F-FE-28m/30m/32m-20 |
