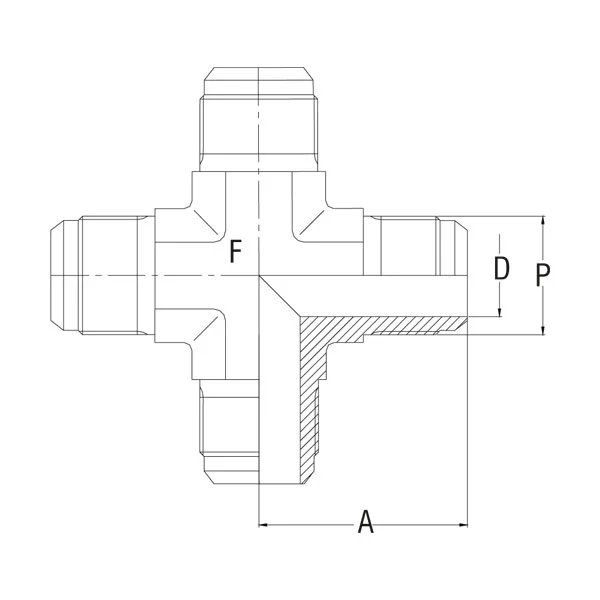

| Model No. | TUBE OD (mm) | TUBE OD (inch) | THREAD (UN/UNF) | A (mm) | D (mm) | F (mm A/F) | Equivalent Model No. |
|---|---|---|---|---|---|---|---|
| GV-320F-UC-4 | 6 | 1/4 | 7/16 - 20 | 22.6 | 4.4 | 11 | GV-320F-UC-6m |
| GV-320F-UC-5 | 8 | 5/16 | 1/2 - 20 | 24.1 | 6 | 13 | GV-320F-UC-8m |
| GV-320F-UC-6 | 10 | 3/8 | 9/16 - 18 | 26.9 | 7.5 | 14 | GV-320F-UC-10m |
| GV-320F-UC-8 | 12 | 1/2 | 3/4 - 16 | 31.8 | 9.9 | 19 | GV-320F-UC-12m |
| GV-320F-UC-10 | 14/15/16 | 5/8 | 7/8 - 14 | 36.8 | 12.3 | 22 | GV-320F-UC-14m/15m/16m |
| GV-320F-UC-12 | 18/20 | 3/4 | 1 1/16 - 12 | 42.2 | 15.5 | 27 | GV-320F-UC-18m/20m |
| GV-320F-UC-16 | 25 | 1 | 1 5/16 - 12 | 46 | 21.5 | 33 | GV-320F-UC-25m |
| GV-320F-UC-20 | 28/30/32 | 1 1/4 | 1 5/8 - 12 | 52.3 | 27.5 | 41 | GV-320F-UC-28m/30m/32m |
| GV-320F-UC-24 | 35/38 | 1 1/2 | 1 7/8 - 12 | 59.2 | 33 | 48 | GV-320F-UC-35m/38m |
Specification
