FEATURES
Maximum Working Pressure:
3000 psi (210 bar) at 100°F (38°C)
Working Temperature :
-10°F (-23°C) to 392°F (200°C)
SS304/SS316 Stainless Steel
Cracking Pressure :
1psi (.06 bar) to 25psi (1.7 bar)
Viton O-rings
Sizes: 1/8”~1” pipe thread
-17%

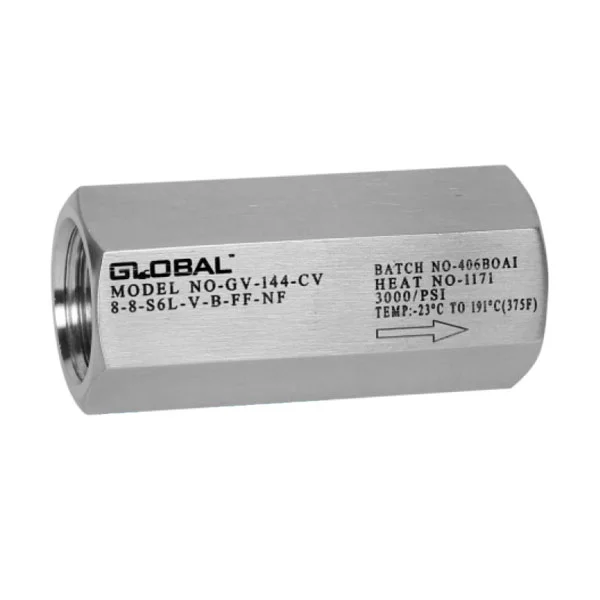

Check Valve (Female x Female)
Original price was: ₹12.₹10Current price is: ₹10.
Check Valve (Inch OD Tubes)
Original price was: ₹12.₹10Current price is: ₹10.
Check Valve (Female x Female)
Original price was: ₹12.₹10Current price is: ₹10.
Description
Specification
3000 PSI Specifications

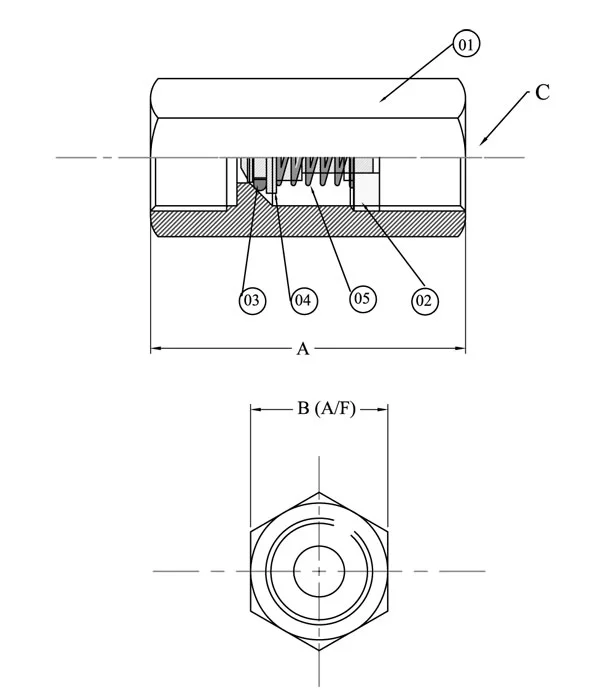

| Model No. | A (mm) | B (A/F) (mm) | C |
|---|---|---|---|
| GV-144-CV-4 | 51 | 19 | 1/4"BSP(F) |
| GV-144-CV-6 | 57 | 22 | 3/8”BSP(F) |
| GV-144-CV-8 | 62 | 27 | 1/2”BSP(F) |
| GV-144-CV-12 | 75 | 36 | 3/4”BSP(F) |
| GV-144-CV-16 | 87 | 41 | 1"BSP(F) |
Bill of Material
| Sr. No. | Description | Material | Qty |
|---|---|---|---|
| 1 | Body | SS316 | 1 |
| 2 | Side Adaptor | SS316 | 1 |
| 3 | O Ring | VITON | 1 |
| 4 | Piston | SS316 | 1 |
| 5 | Spring | SS | 1 |
Note: All dimensions are subject to change without notice. All dimensions are in mm unless specified.
