- Maximum Working Pressure:
3000 psi (210 bar) at 100°F (38°C) - Working Temperature:
-10°F (-23°C) to 392°F (200°C) - Cracking Pressure:
1psi (.06 bar) to 25psi (1.7 bar) - Viton O-rings
- 100% Factory Tested
- Material: SS304L/SS316L, Monel, Hastelloy, Inconel & Duplex
- Material Traceability

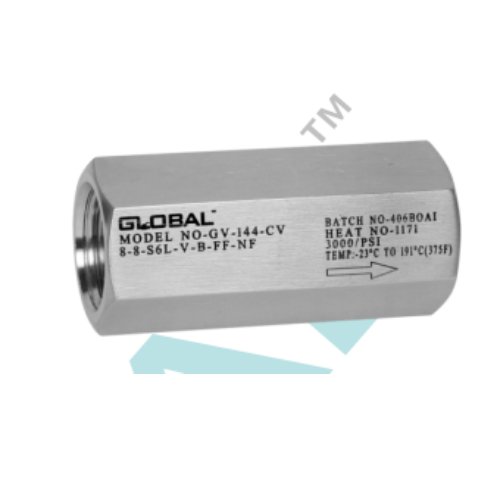

Check Valve (Female x Female) 3K
₹1
Description
Specification
Bill of Material

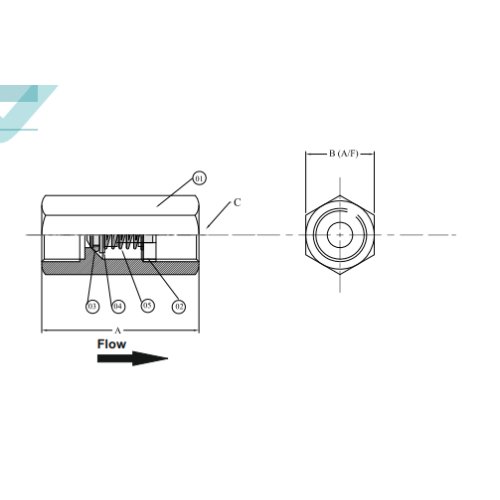

| Sr. No. | Description | Material | Qty |
|---|---|---|---|
| 1 | Body | SS316 | 1 |
| 2 | Check Nut | SS316 | 1 |
| 3 | O Ring | VITON | 1 |
| 4 | Piston | SS316 | 1 |
| 5 | Spring | SS | 1 |
Note: All dimensions are subject to change without notice. All dimensions are in mm unless specified.
3000 PSI Specifications
| Model No. | A | B (A/F) | C |
|---|---|---|---|
| GV-144-CV-4 | 51.0 | 19.0 | 1/4"BSP(F) |
| GV-144-CV-6 | 57.0 | 22.0 | 3/8"BSP(F) |
| GV-144-CV-8 | 62.0 | 27.0 | 1/2"BSP(F) |
| GV-144-CV-12 | 75.0 | 32.0 | 3/4"BSP(F) |
| GV-144-CV-16 | 87.0 | 41.0 | 1"BSP(F) |
