FEATURES
Maximum Working Pressure:
6000 psi (414 bar) at 100°F (38°C)
Working Temperature :
-10°F (-23°C) to 392°F (200°C)
SS304/SS316 Stainless Steel
Cracking Pressure :
1psi (.06 bar) to 25psi (1.7 bar)
Viton O-rings
Sizes: 1/8”~1” pipe thread
100% Factory Tested
Material: SS304L/SS316L, Monel, Hastelloy, Inconel & Duplex
Material Traceability

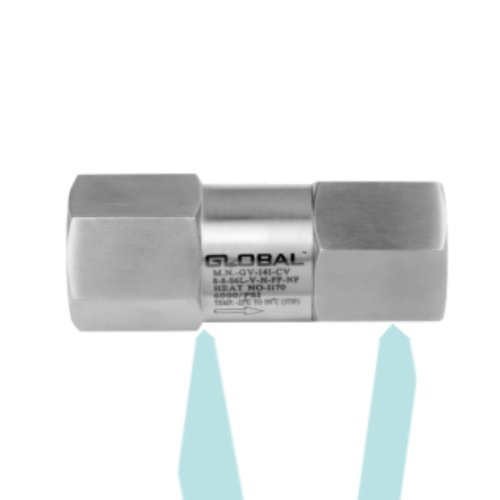

Check Valve (Female x Female) 6K
₹1
Description
Specification

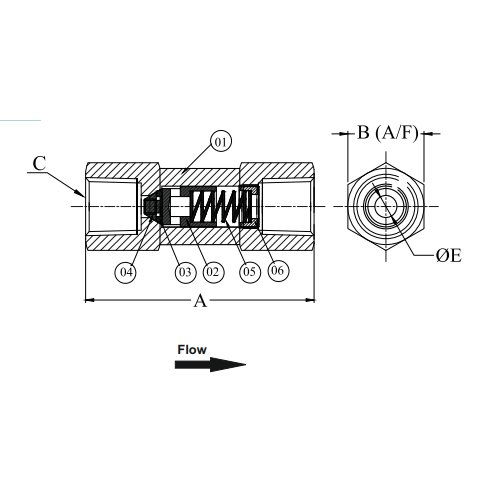

Bill of Material
| Sr. No. | Description | Material | Qty |
|---|---|---|---|
| 1 | Body | SS316 | 1 |
| 2 | Piston Body | SS316 | 1 |
| 3 | O Ring | VITON | 1 |
| 4 | Piston Cap | SS316 | 1 |
| 5 | Spring | Stainless Steel | 1 |
| 6 | Lock Nut | SS316 | 1 |
Note: All dimensions are subject to change without notice. All dimensions are in mm unless specified.
6000 PSI Specifications
| Model No. | A | B (A/F) | C | ØE |
|---|---|---|---|---|
| GV-141-CV-2 | 57.0 | 19.0 | 1/8"NPT | 5.5 |
| GV-141-CV-4 | 57.0 | 19.0 | 1/4"NPT | 5.5 |
| GV-141-CV-6 | 62.0 | 25.0 | 3/8"NPT | 7.0 |
| GV-141-CV-8 | 78.0 | 28.5 | 1/2"NPT | 9.5 |
| GV-141-CV-12 | 82.0 | 36.0 | 3/4"NPT | 12.0 |
| GV-141-CV-16 | 90.0 | 46.0 | 1"NPT | 16.0 |
| GV-141-CV-24 | 110.0 | 65.0 | 1-1/2"NPT | 25.0 |
| GV-141-CV-32 | 120.0 | 76.0 | 2"NPT | 32.0 |
