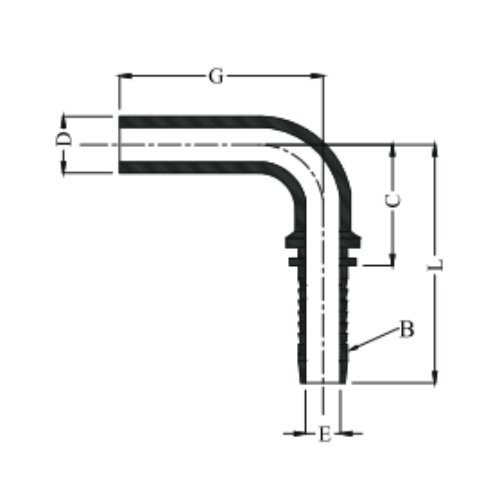

| Model No. | A SIZE (MM) | B HOSE | C | øD | øE | G | L |
|---|---|---|---|---|---|---|---|
| GV-370-EL-6m-4H | 6 | 1/4" | 27.0 | 6.0 | 4.0 | 32.0 | 55.0 |
| GV-370-EL-8m-4H | 8 | 1/4" | 27.0 | 8.0 | 4.0 | 36.0 | 55.0 |
| GV-370-EL-10m-6H | 10 | 3/8" | 25.3 | 10.0 | 7.0 | 42.0 | 55.0 |
| GV-370-EL-12m-6H | 12 | 3/8" | 35.8 | 12.0 | 7.0 | 38.0 | 65.5 |
| GV-370-EL-15m-8H | 15 | 1/2" | 37.5 | 15.0 | 9.5 | 40.0 | 67.0 |
| GV-370-EL-18m-8H | 18 | 1/2" | 48.0 | 18.0 | 9.5 | 53.0 | 77.5 |
| GV-370-EL-22m-12H | 22 | 3/4" | 56.3 | 22.0 | 15.0 | 72.0 | 95.5 |
| GV-370-EL-28m-16H | 28 | 1" | 78.3 | 28.0 | 19.5 | 90.0 | 125.0 |
Specification
