- Maximum working pressure:
6000 psi (414bar) at 100°F (38°C)
10000 psi (690bar) at 100°F (38°C) - Working Temperature:
-65°F (-54°C) TO 464°F (240°C) - Packing is optional with graphite for high temperature to 450°C
- Single block & bleed manifolds are designed to mount to pressure gauges, pressure transmitters and pressure switches
- A compact design is to provide significant savings on space, weight, installation and cost.
- Standard vent port 1/4”NPT female.
- Optional sour gas services conforms to NACE MR0175.
- Hydro test performed with pure water at 1.5 times of working pressure
- Bonnet Lock pin Prevents accidental Removal while in service.
- 100% factory tested
- Material traceability
- Material: SS304L/SS316L, Monel, Hastelloy, Inconel & Duplex

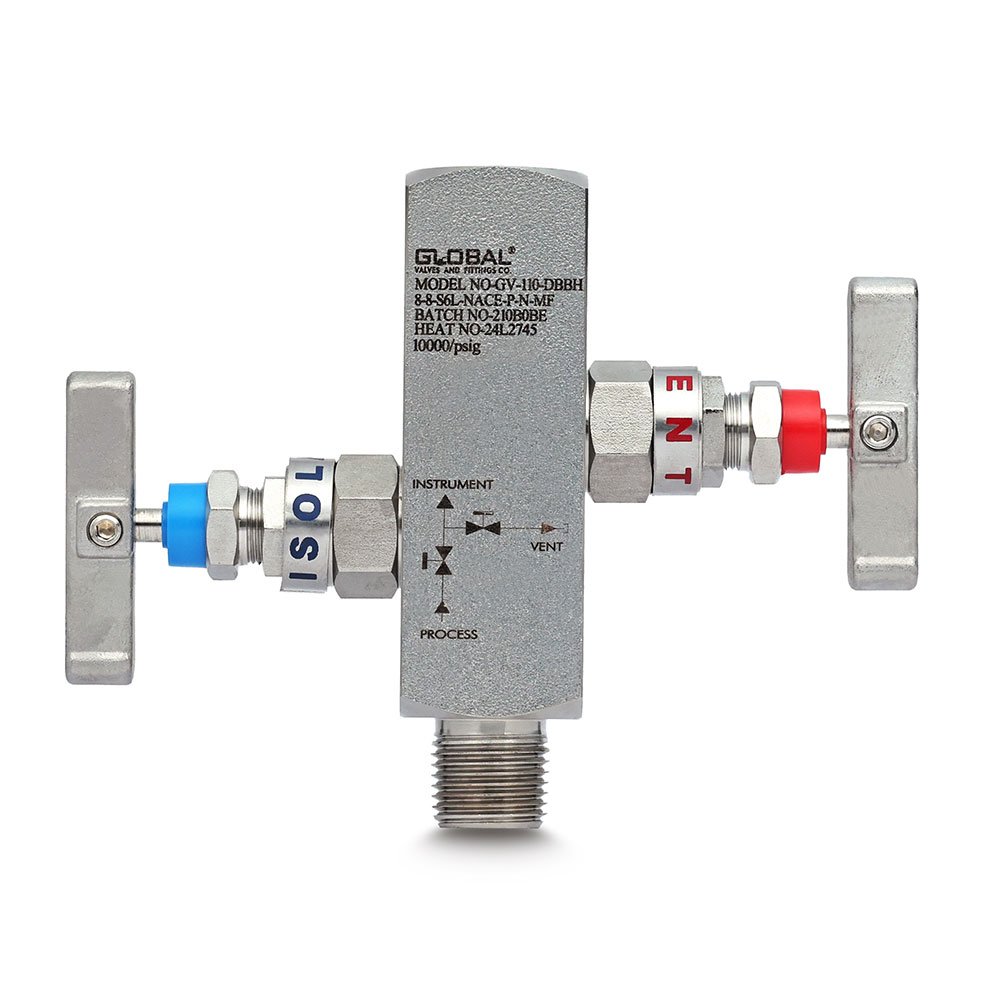

Double Block & Bleed Gauge Valves (Female x Female)
₹1
Description
Specification
Description
| Part No. | Part Description | Material | Qty. |
|---|---|---|---|
| 01 | Body | SS 316 | 1 |
| 02 | Gland Body | SS 316 | 2 |
| 03 | Gland Retainer | SS 316 | 2 |
| 04 | Check Nut | SS 316 | 2 |
| 05 | Spindle | SS 316 | 2 |
| 07 | Trim | SS 316 | 2 |
| 08 | Dust Cap | Rubber | 2 |
| 09 | Handle | Stainless Steel | 2 |
| 10 | Grub Screw | Stainless Steel | 4 |
| 11 | Lock Pin | Stainless Steel | 2 |
| 12 | Gland Ring | SS 316 | 2 |
6000 PSI
| Model No. | Inlet x Outlet |
| GV-110-DBB-8-F/F | 1/2" NPT(F) x 1/2" NPT(F) |
10000 PSI
| Model No. | Inlet x Outlet |
| GV-110-DBBH-8-F/F | 1/2" NPT(F) x 1/2" NPT(F) |

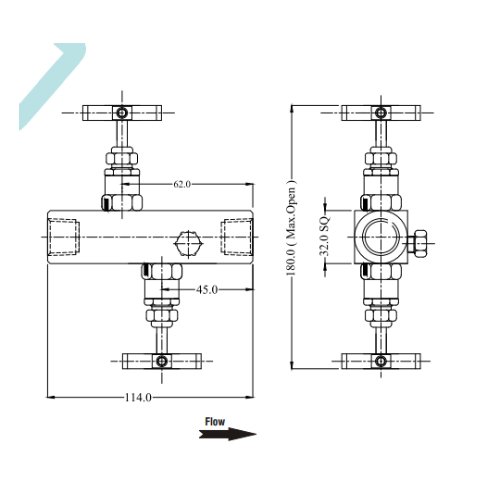

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
