FEATURES
Maximum working pressure:
6000 psi (414bar) at 100°F (38°C)
Working temperature:
-65°F (-54°C) to 464°F (240°C)
Diversity of configuration for application to
differential pressure, level and transmitters.
color caps to identify valve function.
100% factory tested.
Heat code traceability.
Material : A479 304, A479 316, A182 GRF 316
Finish: SS Natural, Shot Blast, Zinc Plated

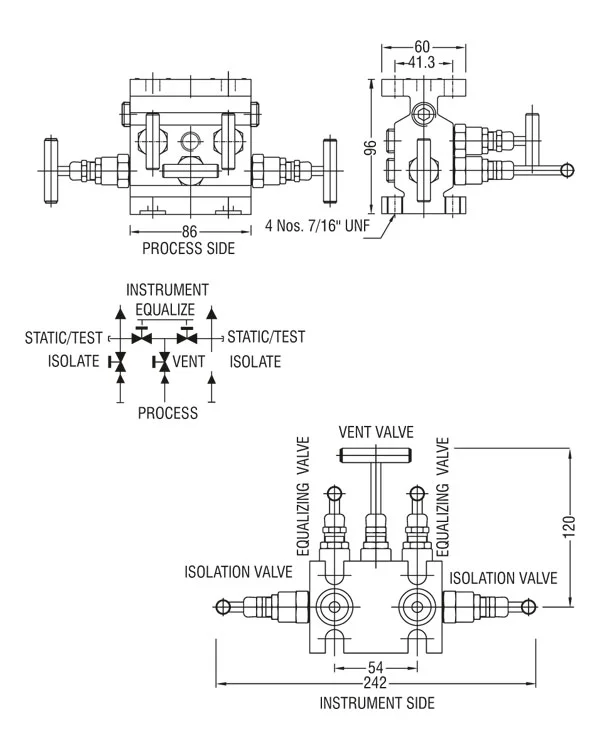

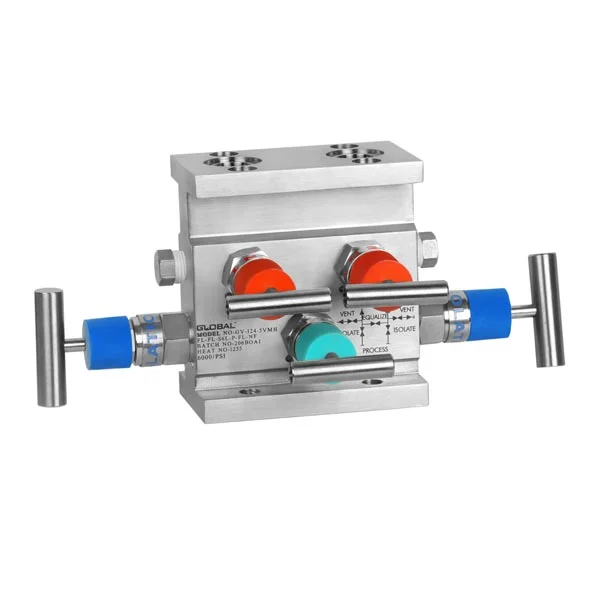

Five Valve Manifold Direct Mount H Type (Flange x Flange)
₹1
Description
Specification
Description
| 01 | Body | SS 316 | 1 |
| 02 | Gland Body | SS 316 | 5 |
| 03 | Gland Retainer | SS 316 | 5 |
| 04 | Check Nut | SS 316 | 5 |
| 05 | Spindle | SS 316 | 5 |
| 07 | Trim | SS 316 | 5 |
| 08 | Dust Cap | Rubber | 5 |
| 09 | Handle | Stainless Steel | 5 |
| 10 | Grub Screw | Stainless Steel | 10 |
| 11 | Lock Pin | Stainless Steel | 5 |
| 12 | Gland Ring | SS 316 | 5 |
