- Maximum working pressure:
6000 psi (414bar) at 100°F (38°C)
10000 psi (690bar) at 100°F (38°C) - Working Temperature:
-65°F (-54°C) TO 356°F (180°C) - Multiport gauge valves allow the versatile positioning of guages
or pressure switches without requiring additional penetration of the main piping - Standard configuration has a male inlet and three ½” NPT female
- Optional sour gas services conforms to NACE MR0175.
- Hydro test performed with pure water at 1.5 times of working pressure
- Bonnet Lock pin Prevents accidental Removal while in service.
- 100% factory tested
- Material traceability
- Material: SS304L/SS316L, Monel, Hastelloy, Inconel & Duplex

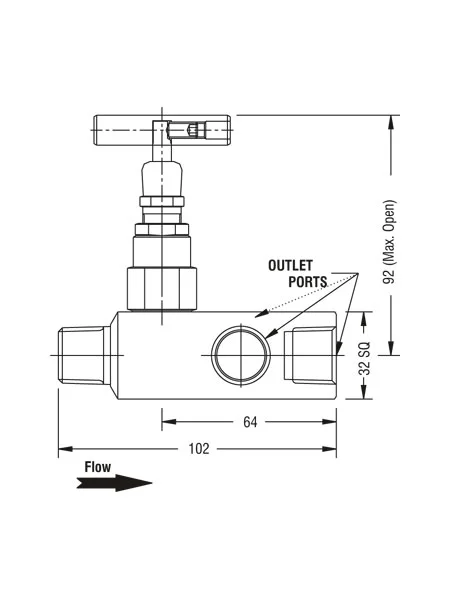

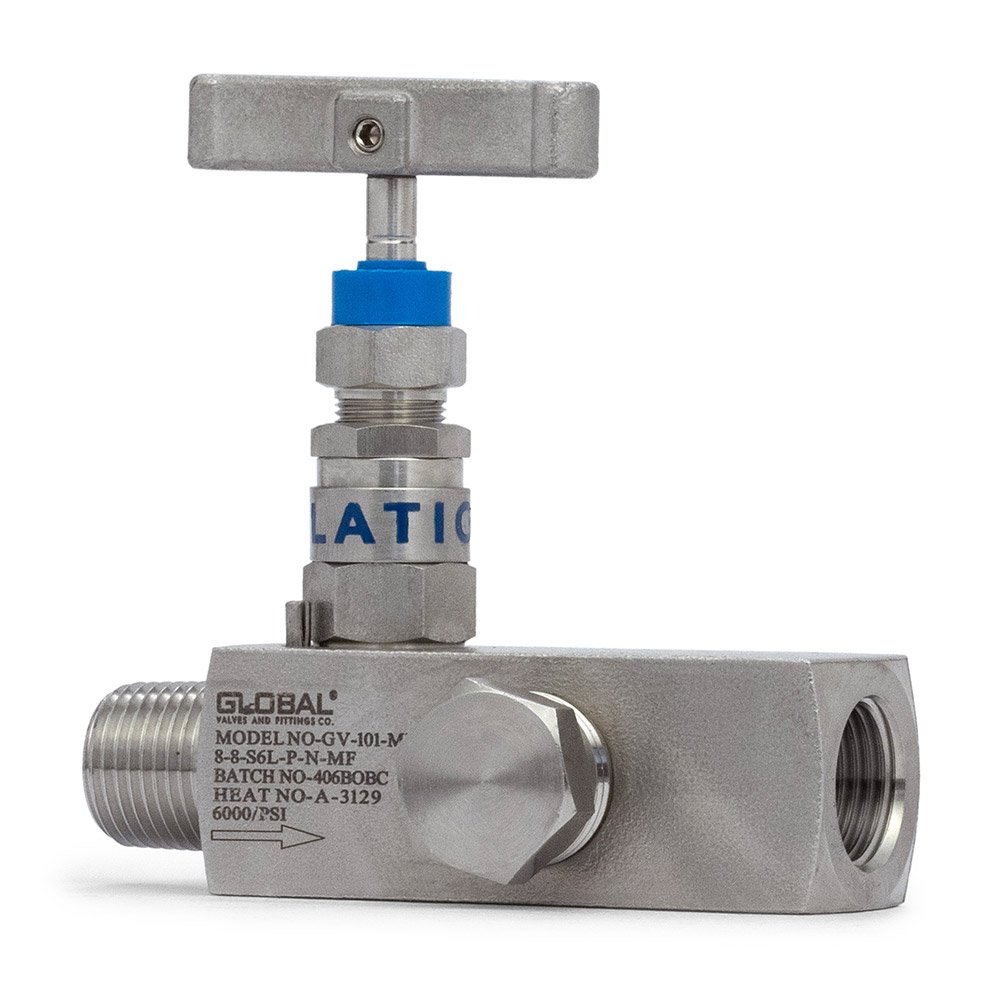

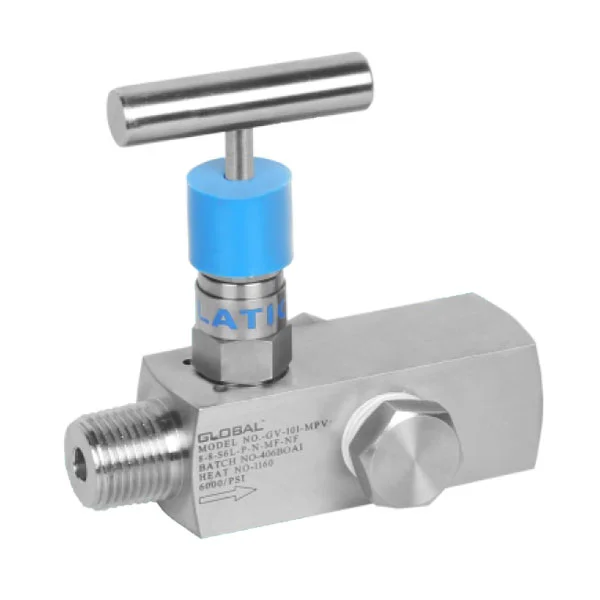

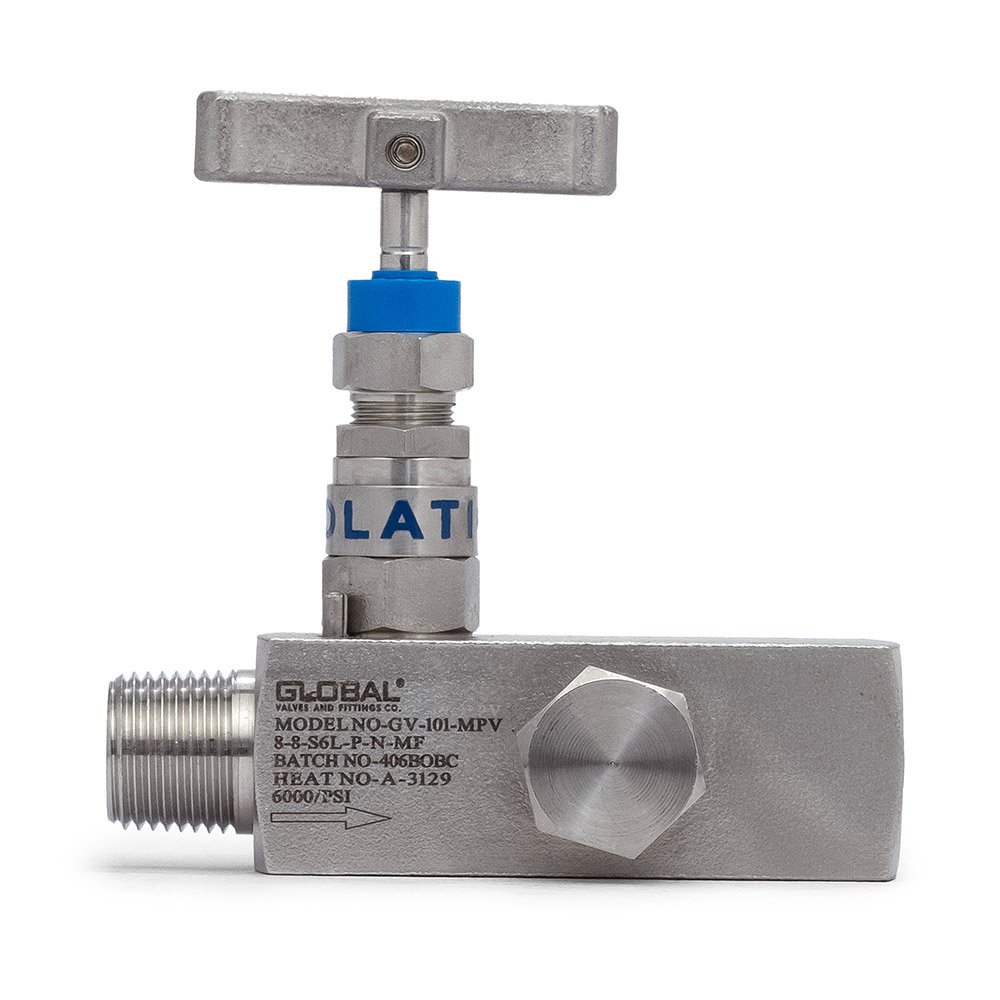

Multi – Port Gauge Valves
₹1
Description
Specification
Description
| Part No. | Part Description | Material | Qty. |
| 01 | Body | SS 316 | 1 |
| 02 | Gland Body | SS 316 | 1 |
| 03 | Gland Retainer | SS 316 | 1 |
| 04 | Check Nut | SS 316 | 1 |
| 05 | Spindle | SS 316 | 1 |
| 06 | Gland Packing | P.T.F.E | 1 |
| 07 | Trim | SS 316 | 1 |
| 08 | Dust Cap | Rubber | 1 |
| 09 | Handle | Stainless Steel | 1 |
| 10 | Grub Screw | Stainless Steel | 2 |
| 11 | Lock Pin | Stainless Steel | 1 |
| 12 | Gland Ring | SS 316 | 1 |
6000 PSI
| Model No. | Inlet x Outlet |
| GV-101-MPV-8-M/F | 1/2" NPT(M) x 1/2" NPT(F) |
| GV-101-MPV-8-F/F | 1/2" NPT(F) x 1/2" NPT(F) |
| GV-101-MPV-12-8-M/F | 3/4" NPT(M) x 1/2" NPT(F) |
10000 PSI
| Model No. | Inlet x Outlet |
| GV-101-MPVH-8-M/F | 1/2" NPT(M) x 1/2" NPT(F) |
| GV-101-MPVH-8-F/F | 1/2" NPT(F) x 1/2" NPT(F) |
| GV-101-MPVH-12-8-M/F | 3/4" NPT(M) x 1/2" NPT(F) |
