- Maximum working pressure:
6000 psi (414bar) at 100°F (38°C)
10000 psi (690bar) at 100°F (38°C) - Working Temperature:
-65°F (-54°C) TO 464°F (240°C) - Packing is optional with graphite for high temperature to 450°C

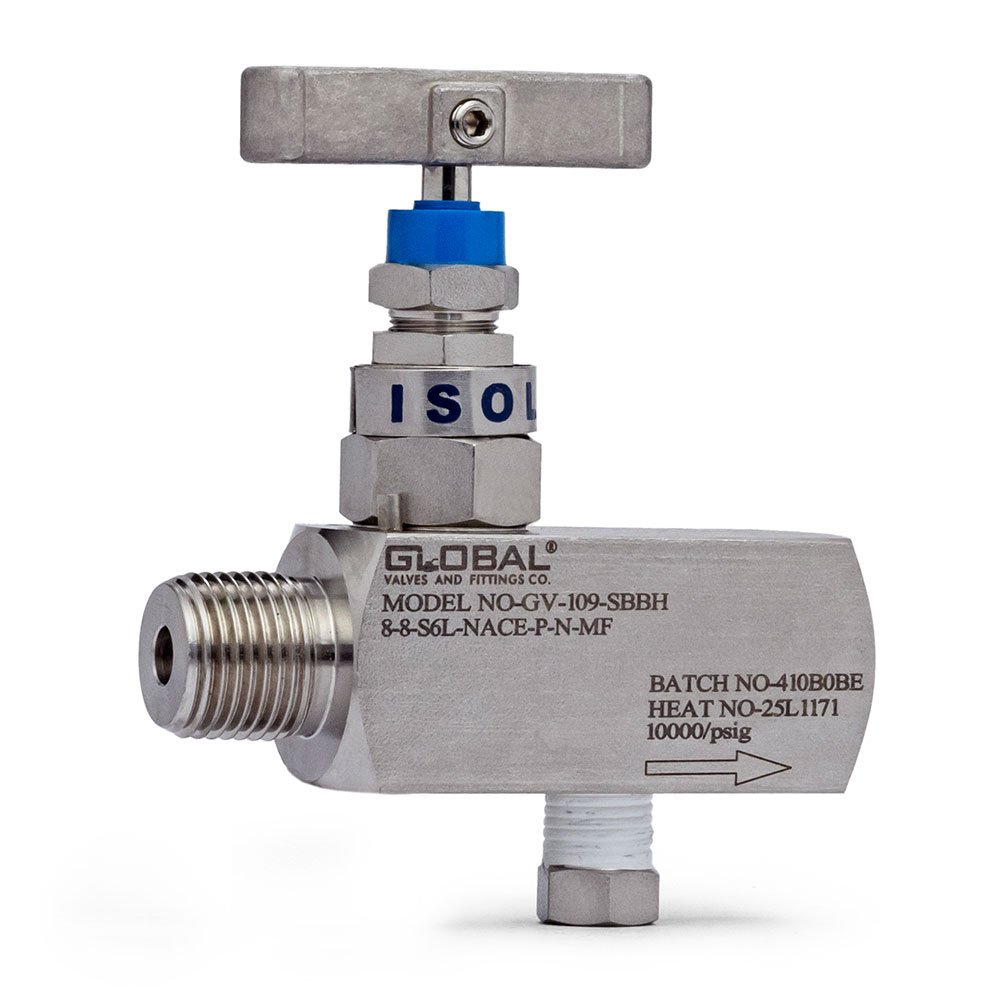

- Single block & bleed manifolds are designed to mount to pressure gauges, pressure transmitters and pressure switches
- A compact design is to provide significant savings on space, weight, installation and cost.
- Standard vent port 1/4”NPT female.
- Optional sour gas services conforms to NACE MR0175.
- Hydro test performed with pure water at 1.5 times of working pressure
- Bonnet Lock pin Prevents accidental Removal while in service.
- 100% factory tested
- Material traceability
- Material: SS304L/SS316L, Monel, Hastelloy, Inconel & Duplex
