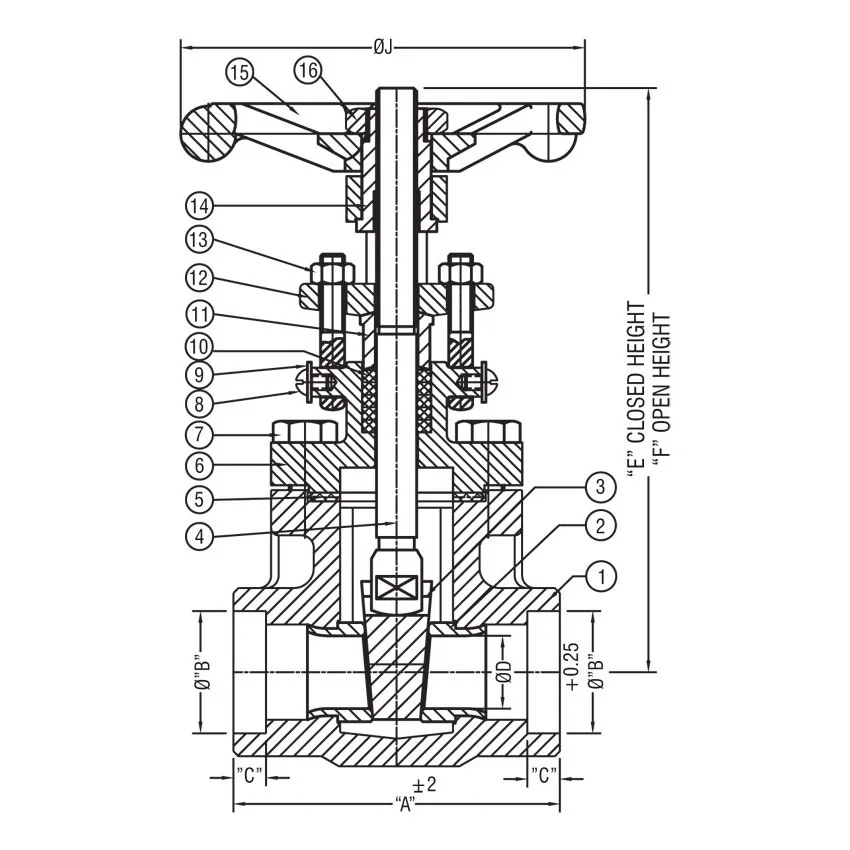

Part List
| SR.NO | DESCRIPTION | QTY. | MATERIAL |
| 1 | END FLANGES | 2 | ASTM-A-182 F/304-316 |
| 2 | BODY | 1 | ASTM-A-182 F/304-316 |
| 3 | SEAT RING | 2 | AISI-304/316 |
| 4 | WEDGE | 1 | ATSI-304/316 |
| 5 | SPINDLE | 1 | ATSI-304/316 |
| 6 | GASKET | 1 | SPIRAL WOUND S304/316 FILLED ASBESTOS |
| 7 | BONNET | 1 | ASTM-A-182 F/7304-316 |
| 8 | BONNET BOLT | 4 | ASTM-A-193 GR.B7 |
| 9 | SCREW | 2 | CARBON STEEL |
| 10 | WASHER | 2 | CARBON STEEL |
| 11 | PACKING | AS REQ | TEFLON/GRAPHOIL |
| 12 | GLAND | 1 | AISI-304/316 |
| 13 | GLAND FLANGE | 1 | ASTM-A-304 |
| 14 | EYE BOLT & NUT | 2 | AISI-304 |
| 15 | YOKE SLEEVE | 1 | NI RESIST |
| 16 | HAND WHEEL | 1 | C.I / M.I. |
| 17 | HAND WHEEL NUT | 1 | CARBON STEEL |
CLASS 150# DIMENSIONS
| SIZE | B | A | D | R | T | K | M | N | I | E | F |
| 1/2" | 12.7 | 108 | 89 | 35 | 11 | 60.5 | 16 | 4 | 89 | 155 | 169 |
| 3/4" | 19 | 117.5 | 98.5 | 43 | 11 | 70 | 16 | 4 | 89 | 157 | 174 |
| 1.0" | 25.4 | 127 | 108 | 51 | 11 | 79 | 16 | 4 | 89 | 172 | 194 |
| 1 1/4" | 32 | 140 | 117.5 | 63.5 | 12.7 | 89 | 16 | 4 | 146 | 234 | 262 |
| 1 1/2" | 38 | 165 | 127 | 73 | 14 | 98.5 | 16 | 4 | 146 | 234 | 267 |
| 2.0" | 50.8 | 178 | 152 | 92 | 16 | 120.5 | 19 | 8 | 146 | 236 | 277 |
CLASS 300# DIMENSIONS
| SIZE | B | A | D | R | T | K | M | N | I | E | F |
| 1/2" | 12.7 | 140 | 95 | 35 | 14.2 | 66.5 | 16 | 4 | 89 | 155 | 169 |
| 3/4" | 19 | 152 | 117.5 | 43 | 15.7 | 82.5 | 19 | 4 | 89 | 157 | 174 |
| 1.0" | 25.4 | 165 | 124 | 51 | 17.5 | 89 | 19 | 4 | 89 | 172 | 194 |
| 1 1/4" | 32 | 178 | 133.5 | 63.5 | 20.5 | 98.5 | 19 | 4 | 146 | 234 | 262 |
| 1 1/2" | 38 | 190.5 | 155.5 | 73 | 22.3 | 114.5 | 22 | 4 | 146 | 234 | 267 |
| 2.0" | 50.8 | 216 | 165 | 92 | 25.4 | 127 | 19 | 8 | 146 | 236 | 277 |
CLASS 600# DIMENSIONS
| SIZE | B | A | D | R | T | K | M | N | J | E | F |
| 1/2" | 12.7 | 165.1 | 95 | 35 | 14.2 | 66.5 | 16 | 4 | 89 | 155 | 169 |
| 3/4" | 19 | 190.5 | 117.5 | 43 | 15.7 | 82.5 | 19 | 4 | 89 | 157 | 174 |
| 1.0" | 25.4 | 215.9 | 124 | 51 | 17.5 | 89 | 19 | 4 | 89 | 172 | 194 |
| 1 1/4" | 32 | 229 | 133.5 | 63.5 | 20.5 | 98.5 | 19 | 4 | 146 | 234 | 262 |
| 1 1/2" | 38 | 241 | 155.5 | 73 | 22.3 | 114.5 | 22 | 4 | 146 | 234 | 267 |
| 2.0" | 50.8 | 292 | 165 | 92 | 25.4 | 127 | 19 | 8 | 146 | 236 | 277 |
Ordering Information: Suffix Model No. by END CONNECTION & CLASS & MOC
Typical Model No: GV-137-GTV-FF-1/2"NB-600-SS316
Note: All dimensions are subject to change without notice.
All dimensions are in mm unless specified.
