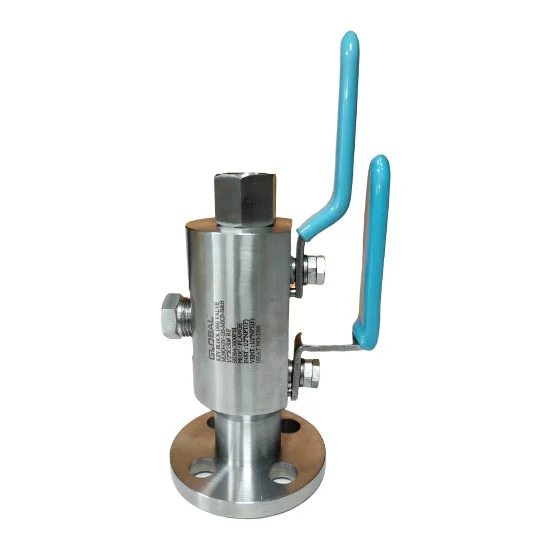

Key Block GV-135-MKB-DBB Double Block & Bleed

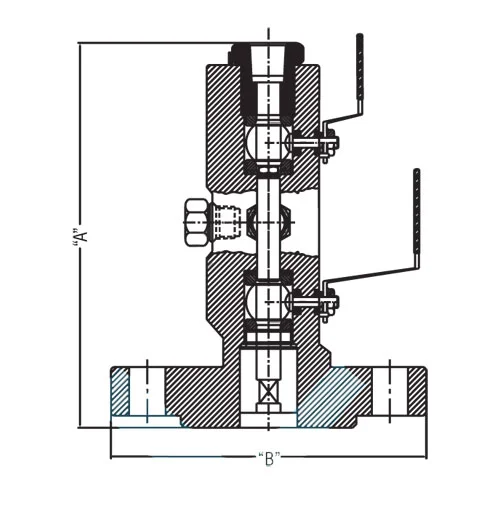

The GV-135-MKB-DBB features two independently operable 10mm bore ball valves for isolation service with an intermediate 5.0mm bore globe style needle valve for venting service.
The GV-135-MKB-DBB are integrally forged one piece double block & bleed, assemblies for primary isolation of pressure take-offs, where the valve is directly mounted to the vessel or process pipe. Instruments may be directly mounted to the valves outlet or alternatively remotely mounted with gauge line / impulse pipe line
STANDARD FEATURES
- 1/2″ NPT threaded female outlet as standard to ANSI / ASME B1.20.1.
- Bolted Outlet Options
- 1/2″ NPT threaded female vent connection to ANSI / ASME B1.20.1.
- Material thickness to ANSI B16.34.
- ANSI B16.5 flanged inlet connection 1/2″ to 2″ sizes 150 lbs rated to 2500 lbs rated.
- Ball Valve Seat Materials. A choice of PTFE and PEEK are available.
- Vent Needle Valve Gland Packing Materials PTFE is offered as Standard. Graphite is also available as an option.
APPLICATIONS
- Double Block & Bleed
- Level Measurement
- Pressure Measurement
- Chemical Injection
- Sampling
- Flow Measurement
(OS &Y) and Globe Style Needle Valve Gland packing Materials Standard Valves are offered with Graphite. PTFE is also available as an option
