- Maximum working pressure:
6000 psi (414bar) at 100°F (38°C) - Working temperature:
-65°F (-54°C) to 464°F (240°C)
-65°F (-54°C) to 842°F (450°C) - PTFE packings can be adjusted to extend the valve life.
- Packing is optional with graphite for high temperature to 450°C
Stem threads are rolled and lubricated to prevent galling and reduce operating torque - Optional sour gas service conforms to NACE MR0175.
- Hydro test performed with pure water at 1.5 times of working pressure.
- Bonnet Lock pin Prevents accidental Removal while in service.
- 100% factory tested
- Material: SS304L/SS316L, Monel, Hastelloy, Inconel & Duplex
- Material Traceability
Needle Valves Screwed Bonnet Design (OD x Male)
₹1
Description
Specification
Bill of Material
| Part No. | Part Description | Material | Qty. |
| 01 | Body | SS 316 | 1 |
| 02 | Gland Body | SS 316 | 1 |
| 03 | Gland Retainer | SS 316 | 1 |
| 04 | Check Nut | SS 316 | 1 |
| 05 | Spindle | SS 316 | 1 |
| 06 | Gland Packing | P.T.F.E | 1 |
| 07 | Trim | SS 316 | 1 |
| 08 | Dust Cap | Rubber | 1 |
| 09 | Handle | Stainless Steel | 1 |
| 10 | Grub Screw | Stainless Steel | 2 |
| 11 | Lock Pin | Stainless Steel | 1 |
| 12 | Gland Ring | SS 316 | 1 |
| 13 | Nut | SS 316 | 1 |
| 14 | Front Ferrule | SS 316 | 1 |
| 15 | Back Ferrule | SS 316 | 1 |
6000 PSI

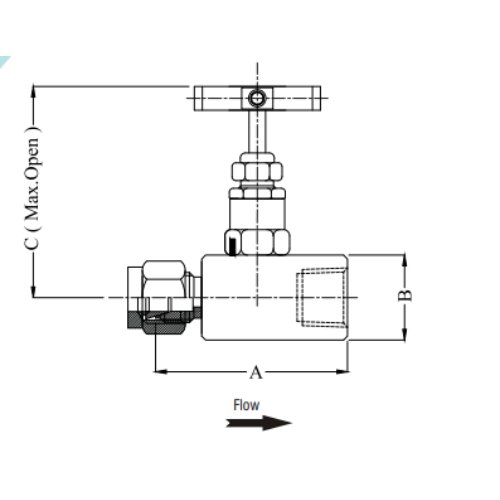

| Model No. | Inlet x Outlet | A | B | C |
|---|---|---|---|---|
| GV-63-NV-4T-4N | 1/4" OD x NPT | 50 | 22 | 89 |
| GV-63-NV-6T-4N | 3/8" OD x NPT | 52 | 25 | 89 |
| GV-63-NV-8T-4N | 1/2" OD x NPT | 65 | 28 | 90 |
| GV-63-NV-12T-4N | 3/4" OD x NPT | 68 | 36 | 110 |
| GV-63-NV-16T-4N | 1" OD x NPT | 82 | 45 | 115 |
Note: All dimensions are subject to change without notice.
All dimensions are in mm unless specified.
