- Maximum working pressure:
6000 psi (414bar) at 100°F (38°C) - Working temperature:
-65°F (-54°C) to 842°F (450°C) - Packing is graphite for high temperature to 450°C
- Stem threads are rolled and lubricated to prevent galling and reduce operating torque.
- Optional sour gas service conforms to NACE MR0175.
- Hydro test performed with pure water at 1.5 times of working pressure.
- 100% factory tested
- Material: SS304L/SS316L, Monel, Hastelloy, Inconel & Duplex
- Material Traceability
Union bonnet Needle Valves (OD x OD)
₹1
Description
Specification
INCH OD Tubes
| Part No. | Part Description | Material | Qty. |
|---|---|---|---|
| 01 | Body | SS 316 | 1 |
| 02 | Bonnet Body | SS 316 | 1 |
| 03 | Gland Retainer | SS 316 | 1 |
| 04 | Check Nut | SS 316 | 1 |
| 05 | Spindle | SS 316 | 1 |
| 06 | Gland Packing | Graphite | 2 |
| 07 | Gland Ring | SS 316 | 1 |
| 08 | Trim | SS 316 | 1 |
| 09 | Dust Cap | Plastic | 1 |
| 10 | Bonnet Check Nut | SS 316 | 1 |
| 11 | Bonnet Washer | SS 316 | 1 |
| 12 | Bonnet Lock Nut | SS 316 | 1 |
| 13 | Handle | Stainless Steel | 1 |
| 14 | Grub Screw | Stainless Steel | 2 |
| 15 | Nut | SS 316 | 2 |
| 16 | Front Ferrule | SS 316 | 2 |
| 17 | Back Ferrule | SS 316 | 2 |
6000 PSI (INCH)

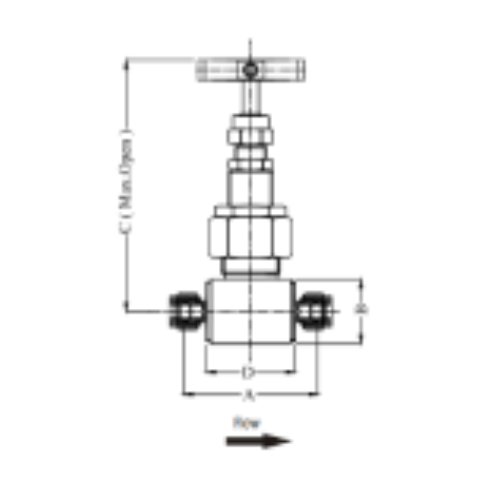

| Model No. | Inlet x Outlet | A | B | C | D |
| GV-59-UB-NV-4 | 1/4"OD | 60 | 29 | 120 | 40 |
| GV-59-UB-NV-6 | 3/8"OD | 62 | 29 | 120 | 40 |
| GV-59-UB-NV-8 | 1/2"OD | 64 | 29 | 120 | 40 |
6000 PSI (MM)
| Model No. | Inlet x Outlet | A | B | C | D |
| GV-59-UB-NV-6m | 6MM OD | 60 | 29 | 120 | 40 |
| GV-59-UB-NV-8m | 8MM OD | 62 | 29 | 120 | 40 |
| GV-59-UB-NV-10m | 10MM OD | 62 | 29 | 120 | 40 |
| GV-59-UB-NV-12m | 12MM OD | 64 | 29 | 120 | 40 |
