3K & 6K
Model No. Hose End |
|||||

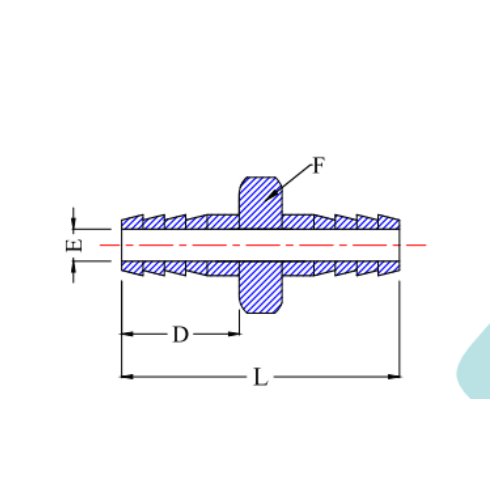

| Model No. | Hose ID Size | L | D | E | F (A/F) |
| GV-217-HN-2H | 1/8" | 26.0 | 10.0 | 2.0 | 11.0 |
| GV-217-HN-4H | 1/4" | 46.0 | 20.0 | 4.8 | 11.0 |
| GV-217-HN-6H | 3/8" | 50.0 | 22.0 | 7.6 | 11.0 |
| GV-217-HN-8H | 1/2" | 55.0 | 24.0 | 9.5 | 14.0 |
| GV-217-HN-12H | 3/4" | 62.0 | 27.0 | 16.0 | 22.0 |
| GV-217-HN-16H | 1" | 69.0 | 30.0 | 22.4 | 28.0 |
*End Connections other thread on Request.
Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
