3000/PSI |
6000/PSI |
||||

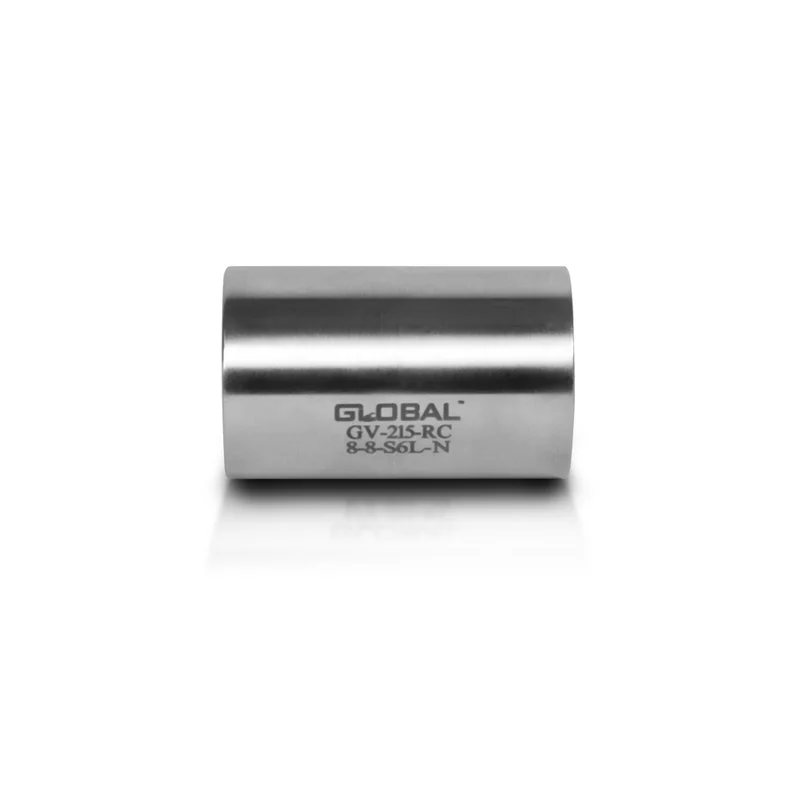

| Model No. | P Male & Female NPT Size |
L | ØD | L | ØD |
| GV-215-RC-4N | 1/4" NPT | 35 | 20 | 35 | 25 |
| GV-215-RC-6N | 3/8" NPT | 38 | 22 | 38 | 32 |
| GV-215-RC-8N | 1/2" NPT | 48 | 23 | 48 | 38 |
| GV-215-RC-12N | 3/4" NPT | 51 | 35 | 51 | 44 |
| GV-215-RC-16N | 1" NPT | 60 | 44 | 60 | 57 |
| GV-215-RC-20N | 1-1/4" NPT | 67 | 57 | 67 | 64 |
| GV-215-RC-24N | 1-1/2" NPT | 79 | 64 | 79 | 76 |
| GV-215-RC-32N | 2" NPT | 86 | 76 | 86 | 92 |
*End Connections other thread on Request.
Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
