- Maximum Working Pressure up to 15000 psi (1100 bar)
- Working Temperature from -40°F (-28°C) to 250°F (450°C)
- Available in SS304L/SS316L, Monel, Hastelloy, Inconel & Duplex
- Colour coded springs available for a wide range of set pressure
- Adjustable bonnet cap adjustable set pressure
- Lock wired secure cap to maintain set pressure
- Liquid or Gas service
- Back pressure and pre-set pressure
- 100% factory tested
- Material Traceability
Pressure Relief Valve (Male x Male)
₹1
Description
Specification
Bill of Material

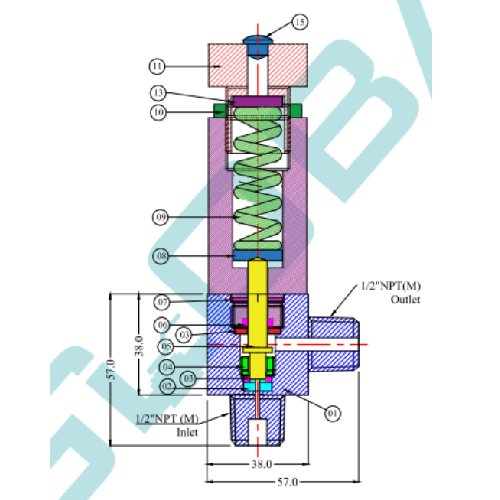

| Part No. | Part Description | Material | Qty. |
|---|---|---|---|
| 1 | Valve Body | SS 316L | 1 |
| 2 | Insert | SS 316L | 1 |
| 3 | O Ring | PEEK | 1 |
| 4 | Seat Retainer | SS 316L | 1 |
| 5 | Stem | SS 316L | 1 |
| 6 | O Ring Stem | VITON | 1 |
| 7 | O Ring Bonnet | VITON | 1 |
| 8 | Bonnet | SS 316L | 1 |
| 9 | Spring Support | SS 316L | 1 |
| 10 | Lock Nut | SS 316L | 1 |
| 11 | Bonnet Cap | SS 316L | 1 |
| 12 | Spring | Steel Spring | 1 |
| 13 | Spring Support-2 | SS 316L | 1 |
| 14 | Washer | SS 316L | 1 |
| 15 | Cap Plug | Plastic | 1 |
PRV Series Spring and Cracking Pressure
| Global Series | Spring Designator | Cracking Pressure | Color | |
|---|---|---|---|---|
| psig | bar | |||
| SG-4 | PRV-S-H | 10010-15700 | 700-1100 | Pink |
