45° MALE ELBOW

₹1

Connection 1
Connection 2	Clear

Add to wishlist

SKU: GV-36-ME45 Category: Tube Fittings

Specification

Specification

INCH OD Tubes X Male NPT Thread

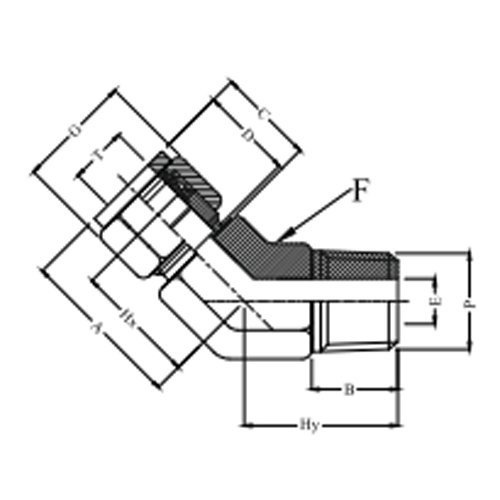

Model No.	T Tube OD	P Weld Pipe	A	B	C	D	E Min	F A/F	G A/F	H	Hy
GV-36-ME45-2-2N	1/8	1/8	22.4	10.0	12.7	15.2	2.5	12.7	11.0	15.8	16.5
GV-36-ME45-4-2N	1/4	1/8	24.6	10.0	15.3	17.8	4.5	12.7	14.0	17.3	16.5
GV-36-ME45-4-4N	1/4	1/4	24.6	14.0	15.3	17.8	4.5	15.5	14.0	17.3	21.0
GV-36-ME45-6-4N	3/8	1/4	27.9	14.0	16.8	19.3	7.1	15.5	17.0	20.6	22.9
GV-36-ME45-6-6N	3/8	3/8	29.2	14.0	16.8	19.3	7.1	20.5	17.0	21.8	24.1
GV-36-ME45-8-6N	1/2	3/8	32.0	14.0	21.8	22.0	9.5	20.5	22.0	21.8	24.1
GV-36-ME45-8-8N	1/2	1/2	32.0	19.0	21.8	22.0	10.5	20.5	22.0	21.8	28.9
GV-36-ME45-12-12N	3/4	3/4	34.0	19.0	22.0	24.0	16.0	28.5	28.5	24.0	31.0
GV-36-ME45-16-16N	1	1	40.4	25.0	26.5	31.2	22.0	36.0	38.0	28.2	37.8

METRIC OD Tubes X Male NPT Thread

Model No.	T Tube OD	P Weld Pipe	A	B	C	D	E Min	F A/F	G A/F	H	Hy
GV-36-ME45-3m-2N	3m	1/8	22.4	10.0	12.9	15.3	2.5	12.7	11.0	15.8	16.5
GV-36-ME45-6m-2N	6m	1/8	24.6	10.0	15.3	17.7	4.5	12.7	14.0	17.3	16.5
GV-36-ME45-6m-4N	6m	1/4	24.6	14.0	15.3	17.7	4.5	15.5	14.0	17.3	21.0
GV-36-ME45-8m-4N	8m	1/4	27.9	14.0	15.3	18.0	7.1	15.5	17.0	20.6	22.9
GV-36-ME45-10m-6N	10m	3/8	29.2	14.0	17.9	19.0	7.1	20.5	17.0	21.8	24.1
GV-36-ME45-12m-6N	12m	3/8	32.0	14.0	21.8	22.0	9.5	20.5	22.0	21.8	24.1
GV-36-ME45-12m-8N	12m	1/2	32.0	19.0	21.8	22.0	10.5	20.5	22.0	21.8	28.9
GV-36-ME45-19m-12N	19m	3/4	34.0	19.0	22.0	25.0	16.0	28.5	28.5	24.0	31.0
GV-36-ME45-25m-16N	25m	1	40.4	25.0	26.5	31.3	22.0	36.0	38.0	28.2	37.8

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
