Male Run Tee
Male Run Tee ₹1
Back to products
Female Branch Tee
Female Branch Tee ₹1

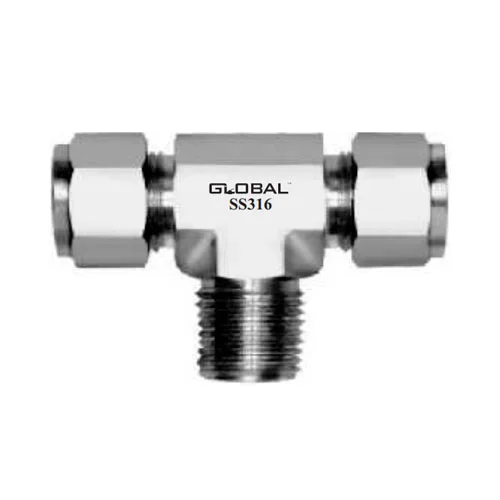

Male Branch Tee

₹1

Clear
Compare
Add to wishlist
SKU: GV-23-MBT Category:
Specification

INCH OD Tubes x Male NPT Threads

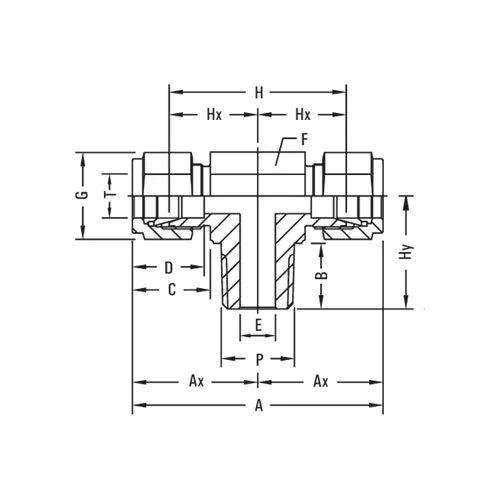

Model No. T Tube OD P NPT Male A Ax B C D E min. F A/F G A/F H Hx Hy
GV-23-MBT-2-2N 1/8 1/8 47.2 23.6 9.6 15.3 12.7 2.4 11 11 34 17 17.8
GV-23-MBT-2-4N 1/8 1/4 49.2 24.6 14.3 15.3 12.7 2.4 14 11 36 18 23.4
GV-23-MBT-4-2N 1/4 1/8 53.8 26.9 9.6 17.8 5.3 4.8 14 14 39.2 19.6 18.8
GV-23-MBT-4-4N 1/4 1/4 53.8 26.9 14.3 17.8 15.3 4.8 14 14 39.2 19.6 23.4
GV-23-MBT-4-6N 1/4 3/8 59.4 29.7 14.3 17.8 15.3 4.8 19 14 44.8 22.4 26.2
GV-23-MBT-4-8N 1/4 1/2 63.6 31.8 19.1 17.8 15.3 4.8 22 14 44.8 24.4 33
GV-23-MBT-6-4N 3/8 1/4 61 30.5 14.3 19.3 16.8 7.1 17 17 46.2 23.1 25.4
GV-23-MBT-6-6N 3/8 3/8 62.4 31.2 14.3 19.3 16.8 7.1 19 17 47.8 23.9 26.2
GV-23-MBT-6-8N 3/8 1/2 66 33 19.1 19.3 16.8 7.1 22 17 51.8 25.9 33
GV-23-MBT-8-4N 1/2 1/4 72 36 14.3 21.8 22.9 4.8 20.5 22 51.8 25.9 28.2
GV-23-MBT-8-6N 1/2 3/8 72 36 14.3 21.8 22.9 9.6 20.5 22 51.8 25.9 28.2
GV-23-MBT-8-8N 1/2 1/2 72 36 19.1 21.8 22.9 10.4 22 22 51.8 25.9 33
GV-23-MBT-10-8N 5/8 1/2 76.2 38.1 19.1 21.8 24.4 11.9 22 25 55.8 27.9 35
GV-23-MBT-12-8N 3/4 1/2 79.8 39.9 19.1 21.8 24.4 11.9 27 29 59.4 29.7 36.8
GV-23-MBT-12-12N 3/4 3/4 79.8 39.9 19.1 21.8 24.4 15.8 27 29 59.4 29.7 36.8
GV-23-MBT-16-12N 1 3/4 98 49 19.1 26.4 31 15.8 35 38 73.6 36.8 41.6
GV-23-MBT-16-16N 1 1 98 49 23.8 26.4 31 22.3 35 38 73.6 36.8 46.5
GV-23-MBT-20-20N 1.1/4 1.1/4 133 66.5 23.8 38.8 41.1 27.6 46 50 89 44.5 47.6
GV-23-MBT-24-24N 1.1/2 1.1/2 156 78 26.2 45.2 50 34 55 57 101.6 50.8 60.4

METRIC OD Tubes x Male NPT Threads

Model No. T Tube OD P NPT Male A Ax B C D E min. F A/F G A/F H Hx Hy
GV-23-MBT-3m-2N 3 1/8 47.2 23.6 9.6 15.3 12.9 2.4 11 11 34 17 17.8
GV-23-MBT-3m-4N 3 1/4 49.2 24.6 14.3 15.3 12.9 2.4 14 11 36 18 23.4
GV-23-MBT-6m-2N 6 1/8 54 27 9.6 17.7 15.3 4.8 14 14 39.2 19.6 18.8
GV-23-MBT-6m-4N 6 1/4 54 27 14.3 17.7 15.3 4.8 14 14 39.2 19.6 23.4
GV-23-MBT-6m-6N 6 3/8 59.6 29.8 14.3 17.7 15.3 4.8 19 14 44.8 22.4 26.2
GV-23-MBT-8m-4N 8 1/4 57.6 28.8 14.3 18.6 16.2 6.3 14 16 42.6 21.3 24.4
GV-23-MBT-8m-6N 8 3/8 61.2 30.6 14.3 18.6 16.2 6.3 19 16 46.2 23.1 26.2
GV-23-MBT-8m-8N 8 1/2 65.2 32.6 19.1 18.6 16.2 6.3 22 16 50.2 25.1 33
GV-23-MBT-10m-4N 10 1/4 63 31.5 14.3 19.5 17.2 7.1 17 19 47.8 23.9 26.2
GV-23-MBT-10m-6N 10 3/8 63 31.5 14.3 19.5 17.2 7.9 19 19 47.8 23.9 26.2
GV-23-MBT-10m-8N 10 1/2 67 33.5 19.1 19.5 17.2 7.9 22 19 51.8 25.9 33
GV-23-MBT-12m-4N 12 1/4 72 36 14.3 22 22.8 7.1 20.5 22 51.8 25.9 26.2
GV-23-MBT-12m-6N 12 3/8 72 36 14.3 22 22.8 9.5 20.5 22 51.8 25.9 28.2
GV-23-MBT-12m-8N 12 1/2 72 36 19.1 22 22.8 9.5 22 22 51.8 25.9 33
GV-23-MBT-16m-8N 16 1/2 76 38 19.1 22 24 11.9 24 25 55.8 27.9 35.1
GV-23-MBT-25m-12N 25 3/4 98.2 49.1 19.1 26.5 31.3 15.8 35 38 73.6 36.8 41.7
GV-23-MBT-25m-16N 25 1 98.2 49.1 23.8 26.5 31.3 21.8 35 38 73.6 36.8 46.5
GV-23-MBT-30m-20N 30 1.1/4 139.8 66.9 23.8 39.2 39.6 26.2 45 50 96.6 48.3 53.1
GV-23-MBT-32m-20N 32 1.1/4 144.6 72.3 23.8 41.6 42 27.6 45 50 98.6 49.3 53.1
GV-23-MBT-38m-24N 38 1.1/2 168 84 26.2 47.9 50 33.7 55 57 112.8 56.4 60.4

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
