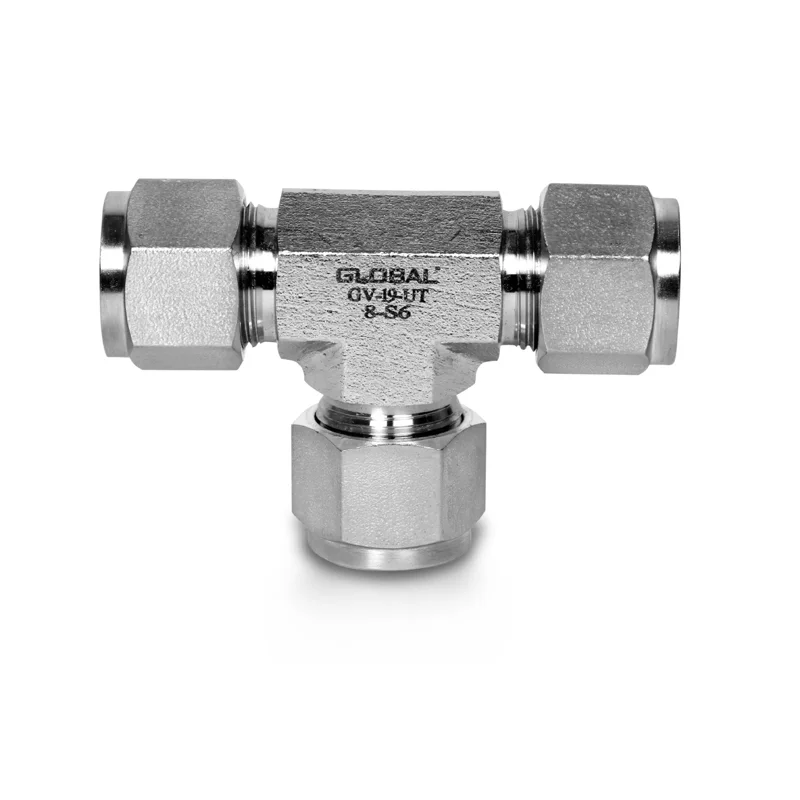

INCH OD Tubes

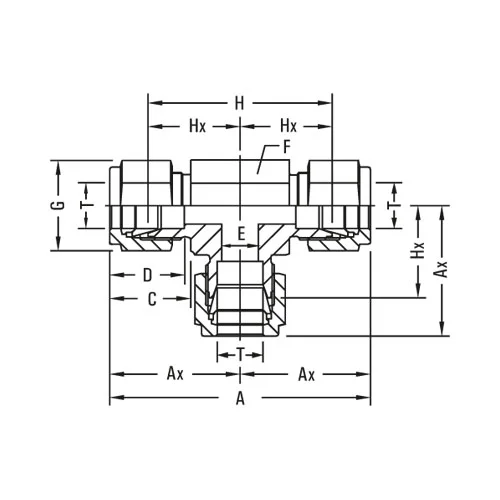

| Model No | T Tube OD | A | Ax | C | D | E min. | F A/F | G A/F | H | Hx |
| GV-19-UT-1 | 1/16 | 35.6 | 17.8 | 11 | 8.6 | 1.3 | 11 | 8 | 28 | 14 |
| GV-19-UT-2 | 1/8 | 44.8 | 22.4 | 15.3 | 12.7 | 2.4 | 12.7 | 11 | 31.6 | 15.8 |
| GV-19-UT-4 | 1/4 | 53.8 | 26.9 | 17.8 | 15.3 | 4.8 | 12.7 | 14 | 39.2 | 19.6 |
| GV-19-UT-5 | 5/16 | 57.4 | 28.7 | 18.5 | 16.3 | 6.3 | 16 | 16 | 42.6 | 21.3 |
| GV-19-UT-6 | 3/8 | 61 | 30.5 | 19.3 | 16.8 | 7.1 | 15.5 | 17 | 46.4 | 23.2 |
| GV-19-UT-8 | 1/2 | 72 | 36 | 21.8 | 22.9 | 10.4 | 20.5 | 22 | 51.8 | 25.9 |
| GV-19-UT-10 | 5/8 | 76.2 | 38.1 | 21.8 | 24.4 | 12.7 | 24 | 25 | 55.8 | 27.9 |
| GV-19-UT-12 | 3/4 | 79.8 | 39.9 | 21.8 | 24.4 | 15.8 | 27 | 28.5 | 59.4 | 29.7 |
| GV-19-UT-14 | 7/8 | 89.4 | 44.7 | 21.8 | 25.9 | 18.2 | 36 | 32 | 69.2 | 34.6 |
| GV-19-UT-16 | 1 | 98 | 49 | 26.4 | 31.2 | 22.3 | 36 | 38 | 73.6 | 36.8 |
| GV-19-UT-20 | 1.1/4 | 133.2 | 66.6 | 38.9 | 41.2 | 27.6 | 46 | 50 | 89 | 44.5 |
| GV-19-UT-24 | 1.1/2 | 156 | 78 | 45.2 | 50 | 34 | 55 | 57 | 101.6 | 50.8 |
| GV-19-UT-32 | 2 | 214.4 | 107.4 | 62.7 | 67.9 | 46 | 70 | 76 | 139.8 | 69.9 |
METRIC OD Tubes
| Model No | T Tube OD | A | Ax | C | D | E min. | F A/F | G A/F | H | Hx |
| GV-19-UT-3m | 3 | 44.6 | 22.3 | 15.3 | 12.9 | 2.4 | 12.7 | 11 | 31.4 | 15.7 |
| GV-19-UT-6m | 6 | 54 | 27 | 17.7 | 15.3 | 4.8 | 12.7 | 14 | 39.2 | 19.6 |
| GV-19-UT-8m | 8 | 57.6 | 28.8 | 18.6 | 16.2 | 6.3 | 14 | 16 | 42.6 | 21.3 |
| GV-19-UT-10m | 10 | 63 | 31.5 | 19.5 | 17.2 | 7.9 | 17 | 19 | 47.8 | 23.9 |
| GV-19-UT-12m | 12 | 72 | 36 | 22 | 22.8 | 9.5 | 20.5 | 22 | 51.8 | 25.9 |
| GV-19-UT-14m | 14 | 76 | 38 | 22 | 24.4 | 11.1 | 24 | 25 | 55.8 | 27.9 |
| GV-19-UT-15m | 15 | 76 | 38 | 22 | 24.4 | 11.9 | 24 | 25 | 55.8 | 27.9 |
| GV-19-UT-16m | 16 | 76 | 38 | 22 | 24.4 | 12.7 | 24 | 25 | 55.8 | 27.9 |
| GV-19-UT-18m | 18 | 79.6 | 39.8 | 22 | 24.4 | 15.1 | 27 | 30 | 59.4 | 29.7 |
| GV-19-UT-20m | 20 | 89.2 | 44.6 | 22 | 26 | 15.9 | 32 | 32 | 69 | 34.5 |
| GV-19-UT-22m | 22 | 89.2 | 44.6 | 22 | 26 | 18.3 | 32 | 32 | 69 | 34.5 |
| GV-19-UT-25m | 25 | 98.2 | 49.1 | 26.5 | 31.3 | 21.8 | 36 | 38 | 73.6 | 36.8 |
| GV-19-UT-28m | 28 | 128 | 64 | 36.6 | 36.6 | 21.8 | 41 | 46 | 87 | 43.5 |
| GV-19-UT-30m | 30 | 139.8 | 69.9 | 39.2 | 39.6 | 26.2 | 46 | 50 | 96.6 | 48.3 |
| GV-19-UT-32m | 32 | 144.6 | 72.3 | 41.6 | 42 | 28.6 | 46 | 50 | 98.6 | 49.3 |
| GV-19-UT-38m | 38 | 168 | 84 | 47.9 | 49.4 | 33.7 | 55 | 57 | 112.8 | 56.4 |
Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified
